The blank of a ball valve

The blank of the ball valve is typically made of either forged steel or cast steel. The manufacturing process of a ball valve involves several key steps to ensure the production of a high-quality and reliable product.

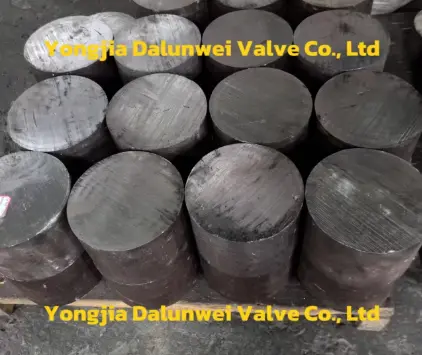

Firstly, the manufacturing process begins with the selection of suitable materials. For forged steel ball valves, the raw material is typically a solid steel bar, while for cast steel ball valves, the material is in the form of molten steel that is poured into a mold.

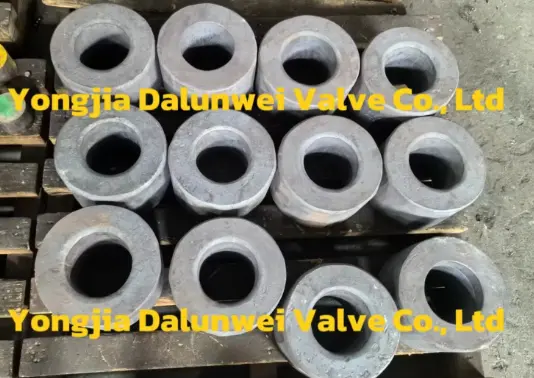

For forged steel ball valves, the process involves forging the solid steel bar into the rough shape of the ball valve body. This is achieved through a series of mechanical processes such as heating, hammering, and pressing to shape the material into the desired form. The forged blank is then machined to achieve the final dimensions and surface finish.

On the other hand, for cast steel ball valves, the molten steel is poured into a mold to form the rough shape of the valve body. Once the casting has solidified, the rough casting is removed from the mold and undergoes further machining processes to achieve the final dimensions and surface finish.

After the rough blanks for the valve bodies are prepared, the next step involves the machining of the ball and stem. This includes processes such as turning, milling, drilling, and grinding to achieve the precise dimensions and surface quality required for the ball and stem components.

Subsequently, the valve components are assembled, which involves fitting the ball and stem into the valve body, along with other necessary components such as seats, seals, and gaskets. The assembly process requires precision to ensure proper alignment and functionality of the valve.

Once the valve is assembled, it undergoes rigorous testing to ensure its performance and reliability. This includes pressure testing, leakage testing, and functional testing to verify that the valve meets the required standards and specifications.

In conclusion, the manufacturing process of a ball valve, whether forged steel or cast steel, involves material selection, forging or casting, machining, assembly, and testing. Each step is crucial in ensuring the quality, performance, and reliability of the final product.
