Understanding the MT testing of ball valves

The MT (Magnetic Particle Testing) for ball valves is a non-destructive testing method used to detect surface and near-surface flaws in the material. This testing process involves the application of magnetic fields and magnetic particles to the surface of the ball valve, allowing for the identification of any discontinuities that may compromise the integrity of the valve.

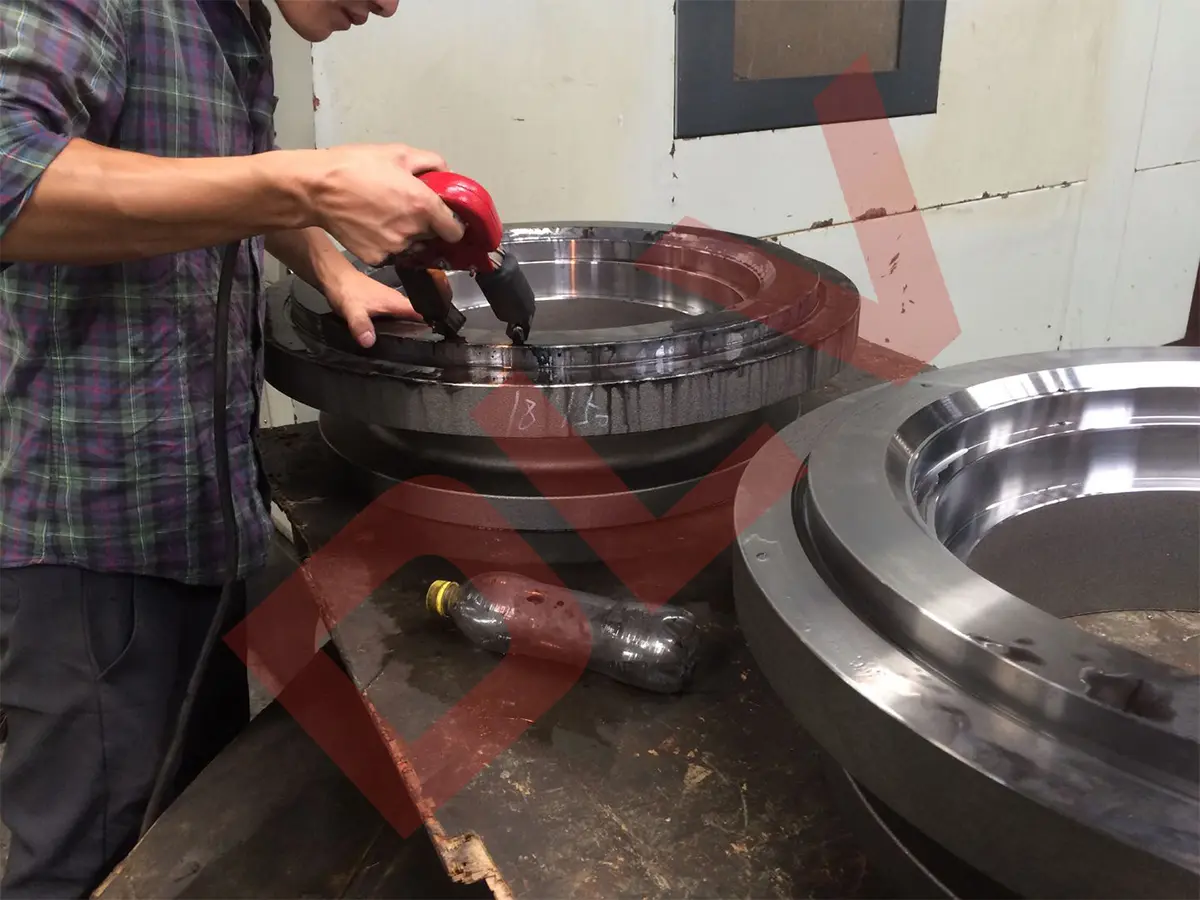

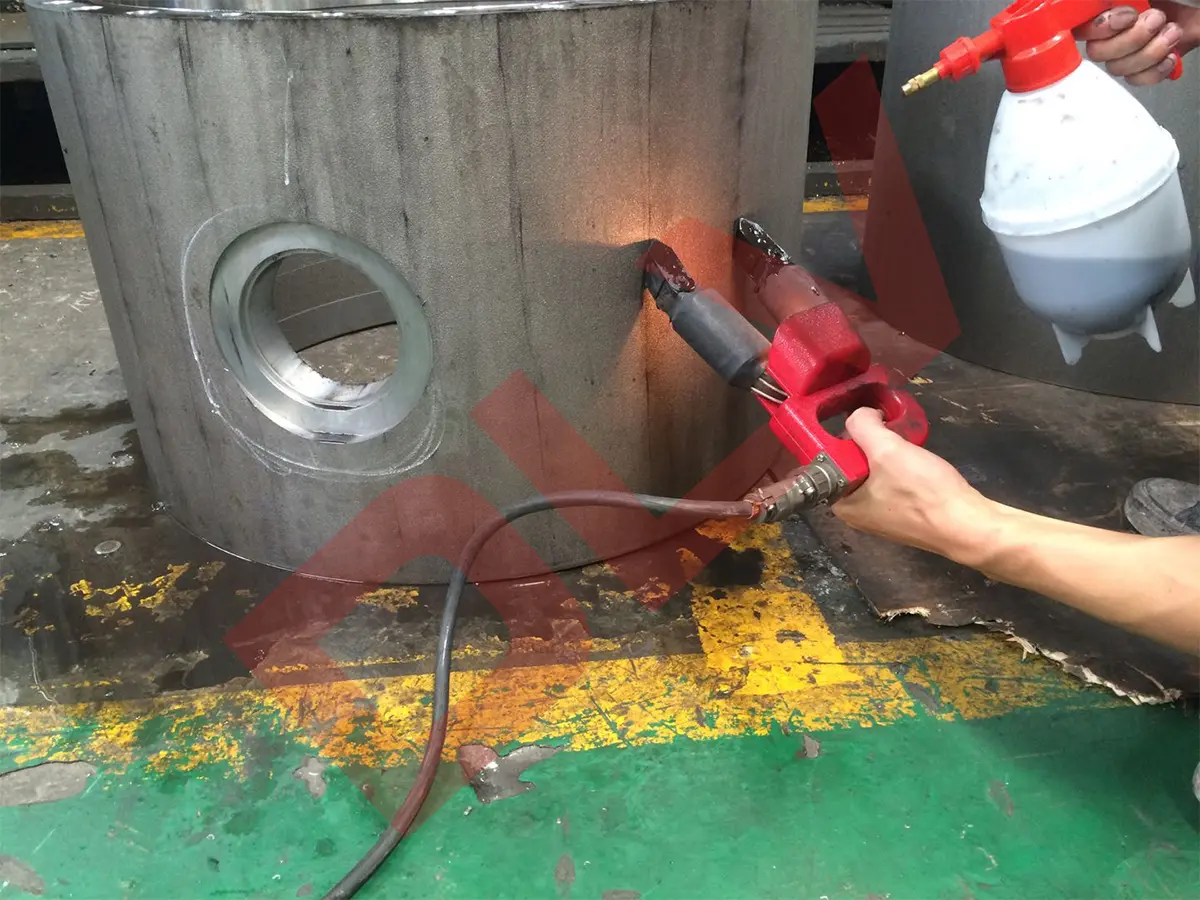

The MT testing process begins with the thorough cleaning of the ball valve's surface to remove any contaminants that could interfere with the test results. Once the surface is prepared, a magnetic field is applied to the area under inspection. Then, ferromagnetic particles, either dry or suspended in a liquid, are applied to the surface. These particles are attracted to and accumulate at areas where magnetic flux leakage occurs, highlighting any surface-breaking or near-surface defects such as cracks, seams, laps, and inclusions.

The MT testing of ball valves serves several important purposes:

1. Detection of Surface Flaws: MT testing is crucial for identifying surface cracks, inclusions, and other defects that may compromise the structural integrity of the ball valve. By detecting these flaws, the testing helps ensure the reliability and safety of the valve in operation.

2. Quality Assessment: The MT testing process allows for the evaluation of the quality and reliability of the ball valve. By identifying and addressing any surface defects, the testing helps maintain the high standards of the valve's construction and performance.

3. Preventing Failures: By detecting potential flaws and defects, MT testing helps prevent unexpected failures of ball valves, contributing to the overall safety and longevity of the valves in service.

In summary, the MT testing of ball valves is a critical non-destructive testing method that plays a vital role in identifying surface and near-surface flaws, assessing the quality and reliability of the valves, and preventing unexpected failures. This testing process is essential for ensuring the safety and performance of ball valves in various industrial applications.
