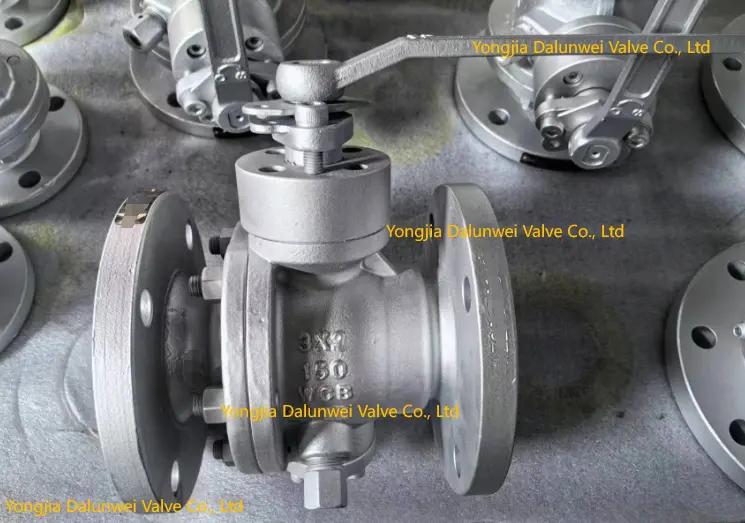

Flange stainless steel floating soft seal ball valve application

The floating ball valve is suitable for various pipes of Class150 ~ Class1500, PN16 ~ PN100, JIS 10K ~ JIS 20K, used to cut off or connect the medium in the pipeline, choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media. This product can be widely used in papermaking, petrochemical, chemical, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial automation control system.
The floating ball valve has two structural forms of full diameter and reduced diameter. Ball valves used for conveying viscous, slagging medium pipelines should be used in full diameter to facilitate the passage of regular wax scrapers and purifiers. For conveying gas or medium with physical properties similar to water, it is appropriate to use a reduced diameter ball valve on the pipeline, because its weight is about 30% lighter than a full-diameter ball valve, which is conducive to reducing pipeline load and reducing costs. The driving mode of floating ball valve is manual, worm gear transmission, pneumatic, electric or hydraulic.

Flanged floating soft seal ball valve application features

1. Excellent Sealing: The floating ball valve design ensures excellent sealing performance, providing a tight shut-off to prevent leakage of fluids. This feature is crucial for maintaining the integrity and safety of the pipeline system.

2. Low Torque Operation: Floating ball valves are known for their low torque operation, making them easy to open and close. This reduces the need for large, expensive actuators and simplifies the operation of the valve.

3. Wide Range of Applications: Floating ball valves are versatile and suitable for a wide range of applications, including oil and gas, petrochemical, water treatment, and more. They can handle various types of fluids, including corrosive and abrasive media.

4. Reduced Maintenance: The simple design of the floating ball valve results in reduced maintenance requirements. This can lead to cost savings and increased operational efficiency over the long term.

5. Quick Opening and Closing: Floating ball valves offer rapid opening and closing capabilities, making them suitable for applications where quick response times are essential.

6. Durability: Floating ball valves are often constructed from durable materials such as stainless steel or alloy steel, providing resistance to corrosion and wear. This ensures a long service life and reliable performance in demanding environments.

7. Flexibility: Floating ball valves can be used in both low-pressure and high-pressure systems, offering flexibility in various industrial settings.

     8. with a fireproof and anti-static structure, a conductive spring is set between the valve stem and the valve body and the valve stem and the ball to avoid the ignition of flammable          media due to static electricity. Ensure system security.

     9.double protection of refractory structure, in case of fire and burning of the sealing ring, the various sealing parts of the ball valve can form a metal-to-metal hard seal structure.
